We are a professional manufacture about ppgi coils,we have produced ppgi steel coils for 15 years with 12 years export experience. Our products cover ppgl coil, prepainted aluminium coil.
More Grade
Chemical Composition and Mechanical Properties
1.Competitive price and high quality from our own factory.
2.Our group having own three factories , two trading companies and one logistics company .Can supply one-stop service from products purchasing to transport.
3.Approved by the ISO 9001,CE,BV,SGS,ABS,API every year.
4.Smooth production ability 60,000tons each month .
5.Strict quality control , ensure any product satisfied with yours application .
6.OEM/ODM , Free of charges of Logo design and printing on your goods
1.Competitive price and high quality from our own factory.
2.Our group having own three factories , two trading companies and one logistics company .Can supply one-stop service from products purchasing to transport.
3.Approved by the ISO 9001,CE,BV,SGS,ABS,API every year.
4.Smooth production ability 60,000tons each month .
5.Strict quality control , ensure any product satisfied with yours application .
6.OEM/ODM , Free of charges of Logo design and printing on your goods
Any problem,please feel free to contact us!
| Name | Prepainted Steel Coils | |
| Type of substrate | Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminium | |
| Thickness | 0.12-1.20mm | |
| Tolerance | Thickness: ± 0.01mm | |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) | |
| Top Paint | 10-25 micron(Normal:10-12mic) | |
| Back paint | 5-12 micron(Normal:5-7mic) | |
| Coating | Zn coating | AZ coating |
| 30-400gsm | 30-400gsm | |
| Coil weight | 3-9 tons or as your requirement. | |
| Coil ID | 508/610 mm | |
| Grade | Galvanized | Galvalume |
| SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH....... | DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD,SGLC4 40,SGLHC........ | |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance | ||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance | ||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
| Type of coating process | Front: Doulbe coated & double drying | |
| Back: Double coated & double drying, single coated & double drying | ||
| Double coated & double drying is used for corrugated sheet | ||
| Double coated & single drying is for sandwich panel | ||

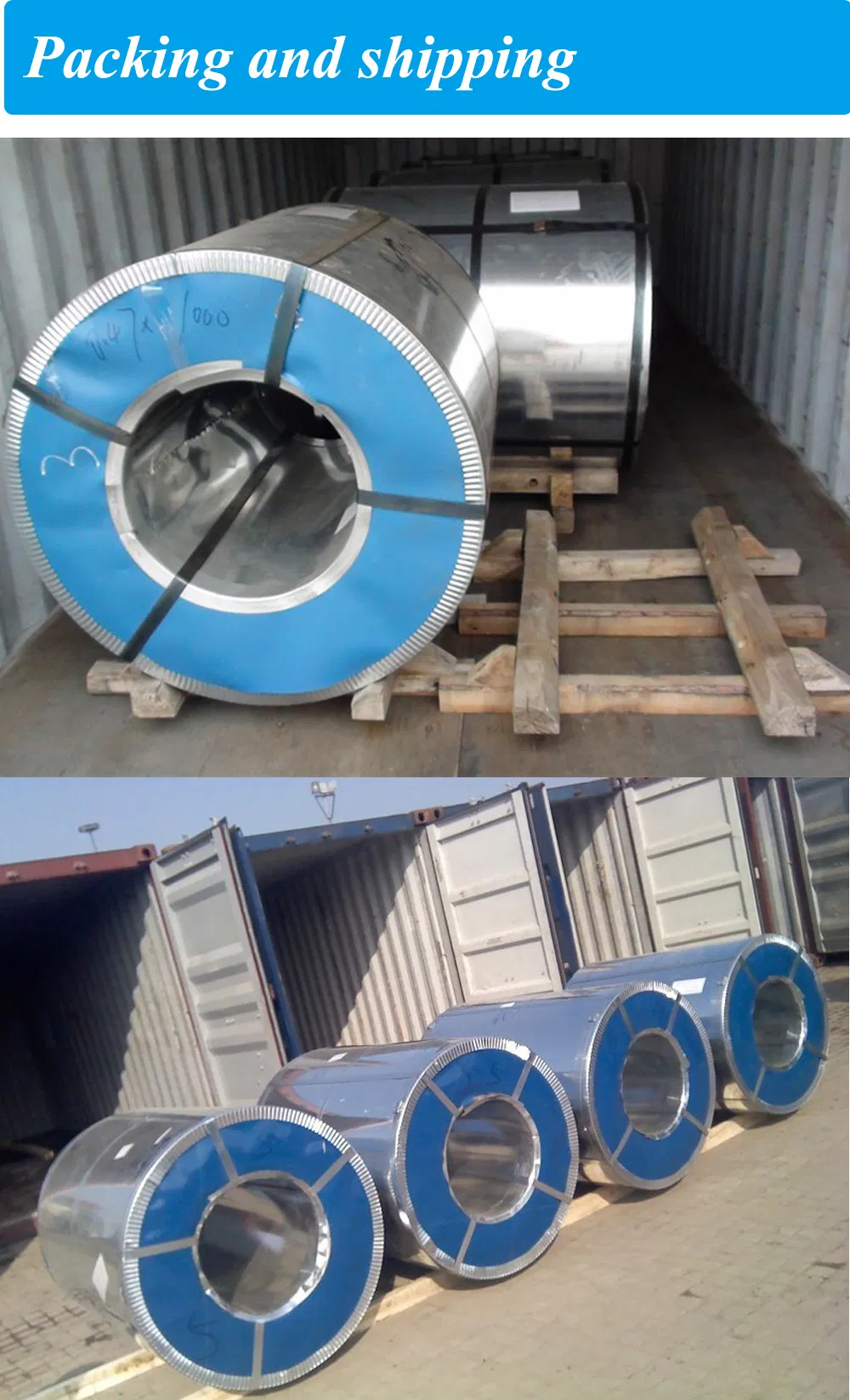

| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet. | |
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings | |
| type of substrate | Standard | Grade of substrate | Application | Grade of PPGI |
| HOT DIP GALVANIZED PLATE | Q/BQB 420 | DC51D+Z | Ordinary use | TDC51D |
| DC52D+Z | SPCD | TDC52D | ||
| DC53D+Z | SPCE | TDC53D | ||
| S280GD+Z | Structure use | TS280GD | ||
| S350GD+Z | Structure use | TS350GD | ||
| S550GD+Z | High strength structure use | TS550GD | ||
| ELECTRO GALVANIZED PLATE | Q/BQB 430 | SECC | Ordinary use | TSECC |
| SECD | SPCD | TSECD | ||
| SECE | SPCE | TSECE | ||
| BLCE+Z | Ordinary use | TBLCE | ||
| BLDE+Z | SPCD | TBLDE | ||
| BUSDE+Z | SPCE | TBUSDE | ||
| HOT DIP GALVALUME PLATE | Q/BQB 425 | DC51D+AZ | Cold forming use | TDC51D+AZ |
| DC52D+AZ | Cold forming use | TDC52D+AZ | ||
| S250GD+AZ | Structure use | TS250GD+AZ | ||
| S300GD+AZ | Structure use | TS300GD+AZ | ||
| S350GD+AZ | Structure use | TS350GD+AZ | ||
| S550GD+AZ | High strength structure use | TS550GD+AZ |
| Q/BQB 440-2003 | JISG 3312-1994 | |
| TDC51D(TSt01,TSt02,TSt03) | CGCC | |
| TDC52D | CGCD1 | |
| TDC53D | - | |
| TS280GD(TStE28) | CGC400 | |
| TS350GD(TStE34) | CGC440 | |
| TS550GD | CGC570 | |
| TSECC ,TBLCE | - | |
| TSECD ,TBLDE | - | |
| TSECE ,TBUSDE | ||
| Q/BQB 445-2004 | AS 2728-1997a(AS 1397-2001) | JISG 3322-1998 |
| TDC51D+AZ | (G2+AZ) | CGLCC |
| TDC52D+AZ | (G3+AZ) | CGLCD |
| TS250GD+AZ | (G250+AZ) | - |
| TS300GS+AZ | (G300+AZ) | - |
| TS350GD+AZ | (G350+AZ) | CGLC490 |
| TS550GD+AZ | (G550+AZ) | CGLC570 |
Chemical Composition and Mechanical Properties
Prepainted Steel Coil | ||||||||
| BASIC MATERIAL | CHEMICAL COMPOSITION % | MECHANICAL PROPERTIES | ||||||
| C | Si | Mn | S | P | T.S | Y.S | E.L | |
| MPA | MPA | % | ||||||
| GL/GI | 0.06 | 0.02 | 0.22 | 0.018 | 0.017 | 346 | 360 | 31 |
| PAINT COATING | MEK | GLOSS | PENCIL RIGIDITY | BENDING TEST | REVERSE IMPACT | INSPECT RESULT | ||
| μm | ||||||||
| 30 | OK | 60% | 3H | 3T | 9J | OK | ||
| Standard :GB/T 12754 2006 | ||||||||
| STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | C.B OF COATING | COATING | ||||||||||
| C | Si | Mn | S | P | T.S | Y.S | E.L | |||||||
| x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=0 180° | G/M² | |||||
| JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK | Z60-150 | ||||
| JIS G3302 SGCH | 12 | 10 | 21 | 18 | 8 | 680 | 650 | OK | Z60-150 | |||||
| ASTM A653 CS.B | 20 | 30 | 60 | 35 | 30 | 386 | 205~380 | 20 | OK | Z80-275 | ||||
| DX51D+Z | 29 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK | Z80-275 | ||||
1.Competitive price and high quality from our own factory.
2.Our group having own three factories , two trading companies and one logistics company .Can supply one-stop service from products purchasing to transport.
3.Approved by the ISO 9001,CE,BV,SGS,ABS,API every year.
4.Smooth production ability 60,000tons each month .
5.Strict quality control , ensure any product satisfied with yours application .
6.OEM/ODM , Free of charges of Logo design and printing on your goods
1.Competitive price and high quality from our own factory.
2.Our group having own three factories , two trading companies and one logistics company .Can supply one-stop service from products purchasing to transport.
3.Approved by the ISO 9001,CE,BV,SGS,ABS,API every year.
4.Smooth production ability 60,000tons each month .
5.Strict quality control , ensure any product satisfied with yours application .
6.OEM/ODM , Free of charges of Logo design and printing on your goods
Any problem,please feel free to contact us!
